inverse.c File Reference

Compute matrix inverse using LU Decomposition, and forward/backward substitution. More...

#include "inverse.h"

Include dependency graph for inverse.c:

Go to the source code of this file.

Functions
void	ludcmp (UCFD_FLOAT *A)
	LU Decomposition function. More...
void	lusub (UCFD_FLOAT *LU, UCFD_FLOAT *b)
	Forward/Backward substitution function. More...
void	lusubmattrans (UCFD_FLOAT *LU, UCFD_FLOAT *B)
	Forward/Backward substitution for transposed matrix. More...

Detailed Description

Compute matrix inverse using LU Decomposition, and forward/backward substitution.

======================================================================================================================

This file contains LU Decomposition function and substitution function.

         (1) LU Decomposition : ludcmp
         Decompose the input matrix A by Lower/Upper triangular matrix.
         A = LU

         (2) Substitution : lusubst
         Solve Ax = b by using forward/backward substitution.
         Input vector `b` is overwritten with the solution vector `x`.

Note

Input matrix must be the n-by-n square matrix, and Row-major format.
Each function treats target matrix as a one-dimensional array.

Author

• Namhyoung Kim (knhks.nosp@m.e@in.nosp@m.ha.ed.nosp@m.u), Department of Aerospace Engineering, Inha University
• Jin Seok Park (jinse.nosp@m.ok.p.nosp@m.ark@i.nosp@m.nha..nosp@m.ac.kr), Department of Aerospace Engineering, Inha University

Date

Nov 2024

Version

1.0

Copyright

Copyright (c) 2024, Namhyoung Kim and Jin Seok Park, Inha University, All rights reserved.

License

This project is release under the terms of the MIT License (see LICENSE file).

---

Definition in file inverse.c.

Function Documentation

ludcmp()

void ludcmp

(

UCFD_FLOAT *

A

)

LU Decomposition function.

Decompose matrix A into lower and upper triangular matrix

Definition at line 37 of file inverse.c.

Here is the caller graph for this function:

lusub()

void lusub	(	UCFD_FLOAT *	LU,
		UCFD_FLOAT *	b
	)

Forward/Backward substitution function.

This function performs Forward/Backward substitution of LU decomposed matrix.

Definition at line 75 of file inverse.c.

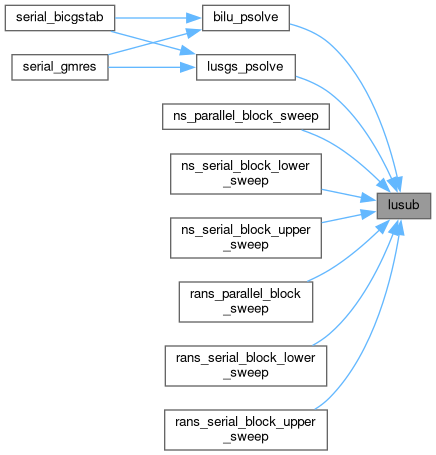

Here is the caller graph for this function:

lusubmattrans()

void lusubmattrans	(	UCFD_FLOAT *	LU,
		UCFD_FLOAT *	B
	)

Forward/Backward substitution for transposed matrix.

Parameters

LU	LU decomposed matrix
B	Right-hand side matrix

Definition at line 105 of file inverse.c.

Here is the caller graph for this function:
